Panasonic introduces a brand new range of Direct Current (DC) Motor Ceiling Mounted Ventilation Fans. With whisper quiet operation & energy efficient performance, these fans provide a quiet and comfortable environment within your home.
QUIET OPERATION - LOW NOISE DESIGN
These fans adopt a distinctive Resonance-Noise-Absorption Structure design. Minimising the transmission of noise from blower to exterior. Reducing the operation noise to incredibly low levels, creating a tranquil and silent environment. The Double Chamber Structure, allows noise to be effectively absorbed and reduced between the double orifice and casing.
ENERGY SAVING - DC MOTOR
Our fans feature a DC Motor to reduce power consumption and save energy. The DC Motor operating temperature is comparatively lower than AC motors, providing a longer lifetime than their AC counterparts.
CONSTANT AIR VOLUME

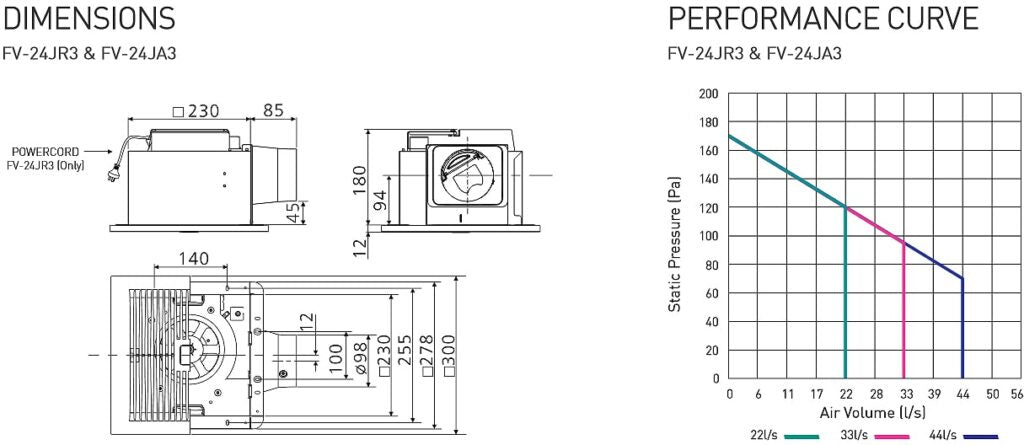

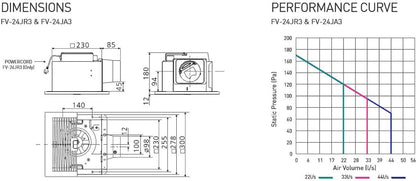

Our fans are equipped with intelligent technology, allowing them to automatically maintain constant air volume within the fan operating limits, to suit varying external static pressures (see performance curve).
24HOUR VENTILATION
Instead of switching off after the run-on timer is finished, the fan can be set to then run at a low airflow setting continuously (avoiding mould and damp issues). This feature is optional and can be configured to suit each homes individual requirements.
BUILT-IN RUN-ON TIMER
Equipped with a run-on timer, the fan can be configured to either switch off or switch to 24 hour ventilation mode after 15 minutes
INTELLIGENT MOTION SENSOR
Equipped with an intelligent Motion Sensor, our ventilating fans can detect human activity and switch on automatically when you enter the room and then switch off again after you leave
COUNT ON PANASONIC
Our fans are manufactured to the highest quality standards to ensure years
of reliable comfort. We even back our reliability by offering a full 3 year parts and labour warranty.
Features
- Super quiet with noise level only 31.0dB(A)* @ 1m on high speed
- DC motor for superior performance and energy efficiency
- Constant air volume output promises performance and widens spec-in solutions
- 24 hour ventilation settings to avoid mould and damp issues
- Built in 15 minute run-on timer, no external timer is required
- Built in backdraft damper meets BCA requirements
- Slim profile and compact design making it suitable for tight ceilings
- Light weight making installation easier Intelligent motion sensor* detects human activity for auto on/off
- Peace of mind with 3 year parts and labour warranty
Installation Manual
| Performance |
Power Consumption (w) |
3.6w / 5.5w/ 9.3w
|
| Specs |
Electrical Voltage (V) |
240v |
| Electrical Power |
Single |
| Electrical Frequency (Hz) |
50Hz |
| Noise @ 1m [dB(A)] |
24.5 / 30.5/ 36.5
|
| Air Volume - (L/s) |
22 / 33 / 44 |
| Dimensions |
230x230
|
| Duct Diameter (mm) |
100 |
| Net Weight (kg) |
2.9kg / 3kg |
| Energy Saving |
Motion Sensor |
Yes (FV-24JR3), No (FV-24JA3) |
| DC (Direct Current) Motor |
Yes |
| Cleaner Air |
Constant Air Volume |
Yes |
| Comfort |
Resonance Noise Absorption Structure |
Yes |
| 24 Hour Ventilation Mode |
Yes |
| Convenience |
Run-on Timer |
Yes - 15 Minute |
| Backdraft Damper |
Yes - Meets BCA Requirements |
| Reliability |
Warranty |
3 Years Manufacturer's Warranty |
